TubBuddy

Overview

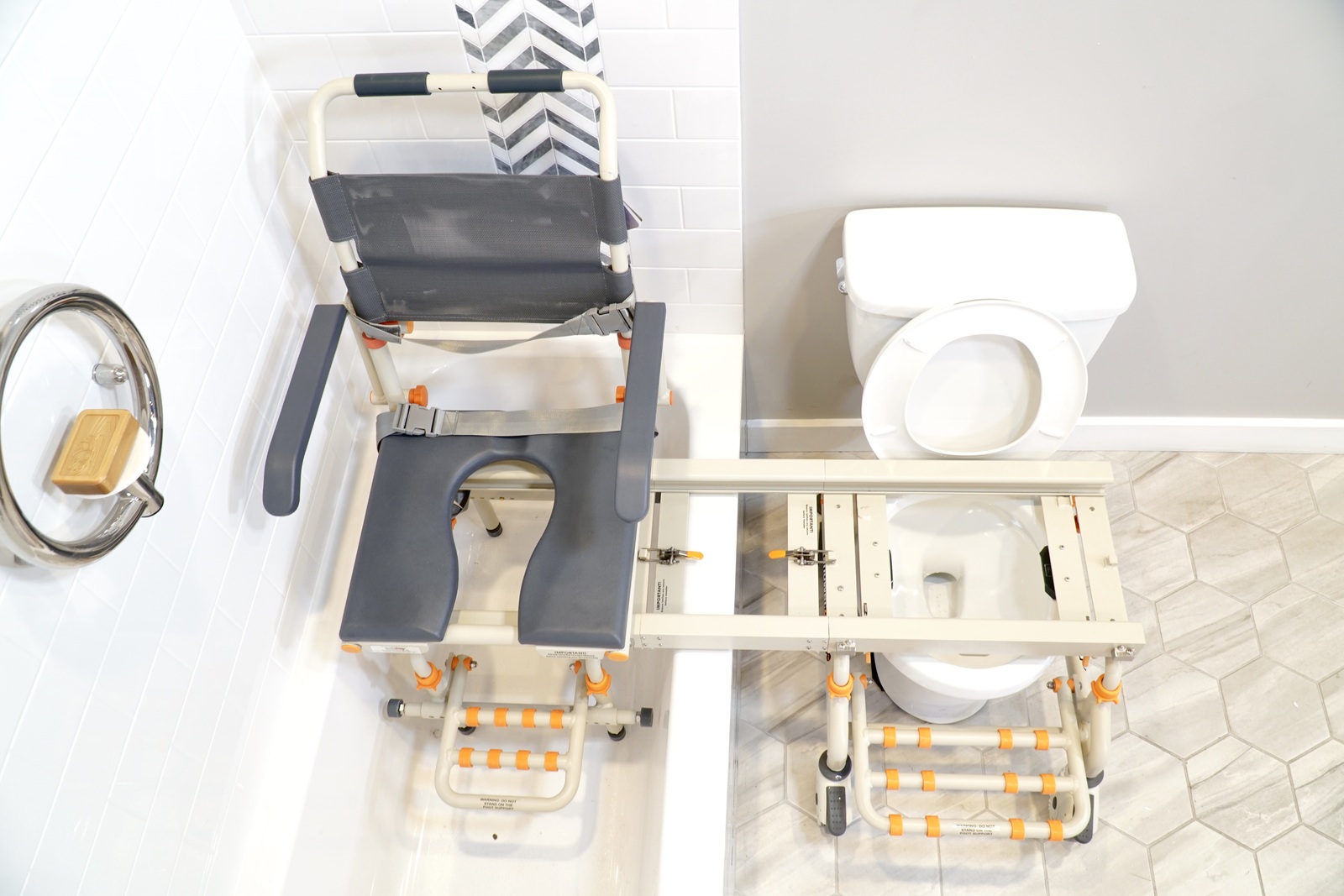

The bath transfer system from ShowerBuddy is designed to allow a user to be safely transferred by a caregiver over a bathtub to shower without costly bathroom remodeling. The TubBuddy eliminates unnecessary transfers between toileting and bathing making it comfortable for both user and caregiver, while reducing costs and contributing to good user hygiene.

The TubBuddy transfer system will turn your existing bath tub into an accessible bathroom that allows you to enjoy showering again without the excessive cost, delay and stress of a full bathroom remodel.

The TubBuddy consists of a comfortable chair and elevated bridge, which will allow users to clear most regular bathtub sides. Additionally it's also a full-featured raised toilet chair, which eliminates extra transfer between toilet and showreing.

This product is not returnable/refundable.

Weight capacity - 250kg
Rolls over most standard toilets
Arms - removable / lockable / flip-back
Height adjustable
Safety mechanisms & side stabilizers on bath base
No rust aluminum frame (Grade 6061 T6)
Stainless steel parts and hardware (Grade 304)
Footrest - fold-up foot rest on rolling base and on bath base
Safety belts - lap & chest belts
Caster Wheels - 125mm x 4 locking Commode system
Tool-free assembly

Technical Dimensions

Chair Width - over caster wheels 490mm
Chair Width - over arms 570mm
Chair Width - Inside Arms 475mm - smaller users see accessory pages
Chair Length - including footrest 845mm (745mm excluding)
Backrest Width 460mm
Backrest Height from Cushion to top 440mm
Toilet Height Clearance (maximum) 535mm
Toilet Width clearance at narrowest 375mm (at casters)
Toilet clearance can depend upon the shape of the toilet pan
Bridge Length (Standard) 300mm or Accessory 200mm or customized,see Accessories
Seat Cushion Dimensions 460 W x 430mm D
Seat Height from Floor 575mm to 675mm (Adjustable)
Seat Cushion Opening 175mm W x 335mm L
Bath Tub Base unit width over feet 335mm
Bath Tub Height from floor 535mm maximum or contact AMS for custome made
Bath Tub Depth up to 530mm maximum or contact AMS for custome made
Bath Tub width for stabilisers 440mm - 680mm

Specifications

Brand	ShowerBuddy
Shipping Weight	32.4000kg
Shipping Width	0.680m
Shipping Height	0.081m
Shipping Length	0.580m
Shipping Cubic	0.031946400m3
