Overview

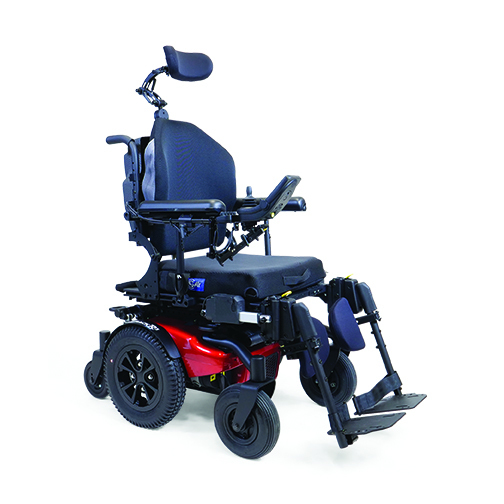

The AllTrack R3 is the one and only true Hybrid-Wheel Drive (HWD), melding the best of rear-wheel drive and mid-wheel drive in one power wheelchair.
This makes it ideal for users that demand outdoor performance, speed and comfort of a rear-wheel drive, but requires the maneuverability of a mid-wheel.
By combining unique geometry with a dual-action suspension the R3 offers a compact, manevuerable base that doesn't sacrifice perfomance.
FEATURES
- Patented Dual-Action Suspension: Fully independent 6-wheel interactive suspension with vertical shock absorption
- Stability, speed, comfort, and outdoor performance of rear-wheel drive
- Compact footprint and turning radius of 21.75” (550 mm) provides maneuverability similar to a mid-wheel drive
- Available with center mount articulating foot platform or independent elevating legrests
- Multiple frame, drive wheel and caster options
SPECIFICATIONS
SWL: 136kg
Base Width: 595/645m
Base Length: 910mm
Ground Clearance: 75/90mm
Turning Radius: 550mm
Seat Width: 380-660mm
Seat-to-Floor Height Range: 400-485mm
Weight: 90.2kg
